Welcome to Click-Broadcast
Reliable remote monitoring and control for Television and Radio Broadcast sites
Info
Click Broadcast is a complete solution (hardware and secure remote web access) targeting broadcast transmission sites and equipment.
Web access
Access and control any of your sites from anywhere via a web browser. Easy to configure custom dashboards provide a simple and intuitive view of your equipment at a glance.
Hardware
- Inbuilt cellular connectivity
- 8 optically isolated inputs
- 8 normally open relay (dry contact) outputs
- 8 0-10Vdc analog inputs
- 1 RF monitor port (-65 to -15dBm)
- 1 temperature sensor input
Alert notifications
Push notifications (using Pushover) are available and easily configured for analog and digital inputs. Online-offline, mains failure-mains restored, local-remote, etc are always available if desired. PushOver (pushover.net) charge a once-off fee for each smart device.
Features

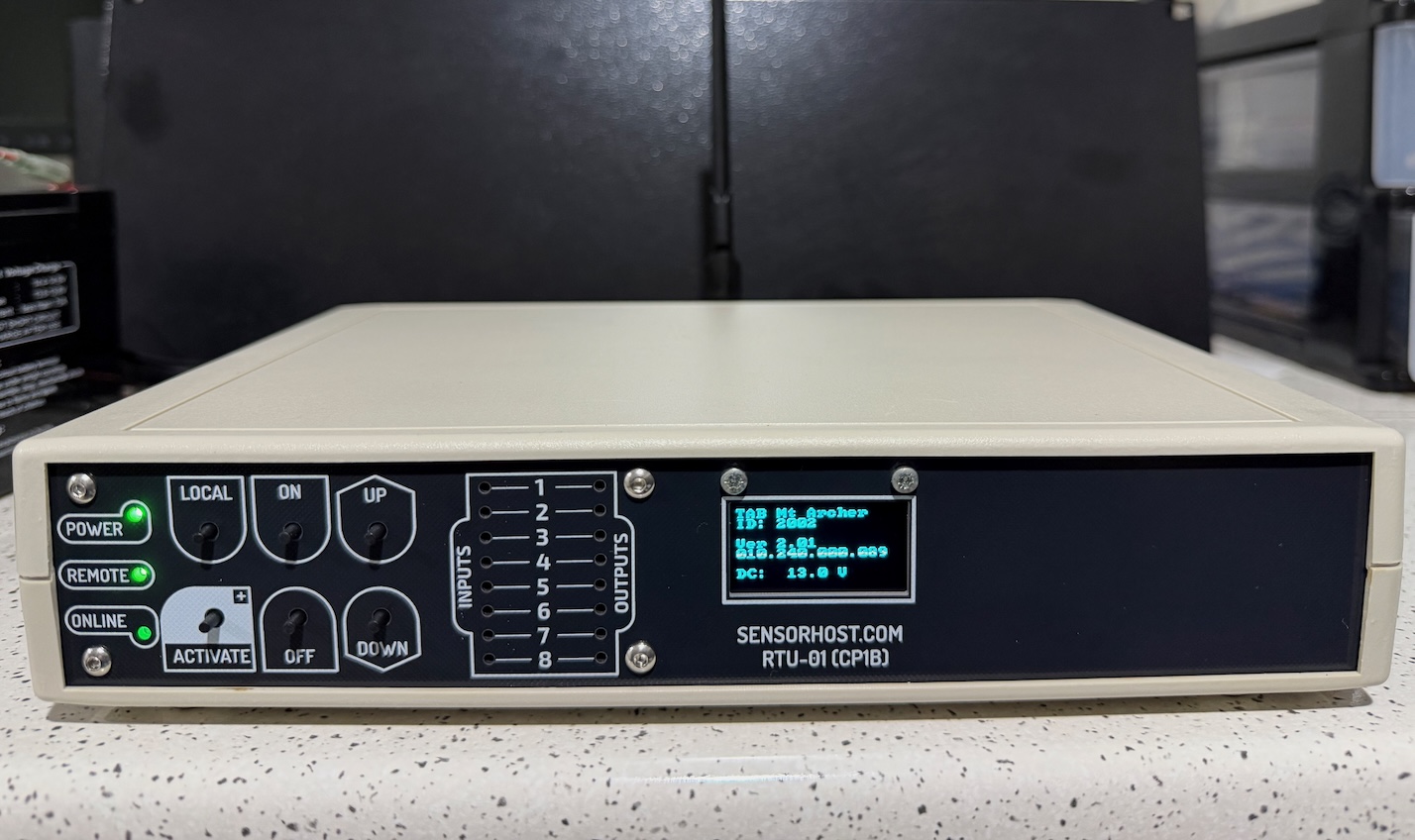

When developing the RTU-01, we added features our customers asked for, and then developed the web platform to be simple to use and easy to configure.
24/7 live remote monitoring & control
Monitor up to 8 inputs, 8 outputs, 8 analogs, temperature, battery voltage, and RF level with a single low cost RTU.
Extremely secure
Each RTU connects over a VPN (virtual private network) preventing any unwanted access and potential threats.
Status notifications
Alert notifications are sent directly to your phone, tablet, or PC. Add additional recipients as required.
No hidden costs
Your site has a low single monthly cost with no add-ons or extra charges.
Digital inputs
Each RTU-01 has eight optically isolated inputs that work on 12-24Vdc. Each OPTO input is NOT polarity conscious and both terminals are individually available for each input.
Relay outputs
Each RTU-01 has eight relay (normally open) contacts for control. Each contact is rated at 30Vdc 500mA. Additionally, each output can be configured for either on-off or pulse on modes.
Analog Inputs
Each RTU-01 has eight 0–10Vdc analog inputs. Other analog input options are possible but not included in the standard RTU-01 product (0-20mA/4-20mA/0-5Vdc)
Temperature sensing
Each RTU-01 has a single temperature sensor input (sensor supplied with 2m cable length). Additional temperature sensors are possible but not available in the standard RTU-01 product.
About Us
Click broadcast has been created by SensorHost with over 30 years in the remote telemetry and broadcast industry globally.
