RTU-01 (CP1B)
Secure, affordable, and reliable peace of mind
RTU-01 (CP1B)
$750.00 AUD +GST if applicable
The RTU-01 is a stand-alone remote telemetry unit with LTE/4G cellular connection and various inputs and outputs that suits most television and radio transmission sites.
While the RTU-01 may appear to be a simple device, it is packed with features!
Local controls

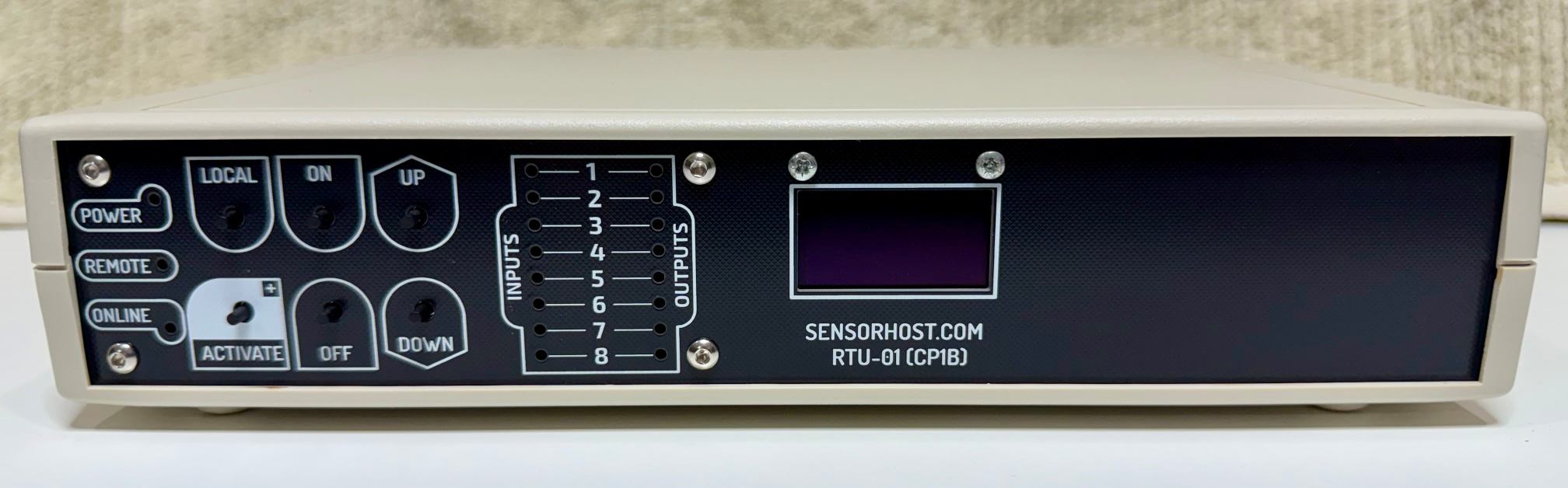

The RTU-01 can be controlled locally by maintenance staff while on-site. By placing the unit into 'local' mode this will prevent remote operation for safety of the on-site workers. Simple front panel button presses provide access to view all inputs and outputs, and manually operate relay outputs.
Simple to install
Analog inputs, digital inputs, and relay outputs are available via three 20way IDC connectors on the rear of the unit. Each RTU-01 is supplied with 3 ribbon cables with an IDC connector on one end with each 2 meters long. These can be terminated on Krone style blocks if desired. Also note, the system operating voltage (12.0-13.8Vdc) is available on two pairs of wires in each ribbon cable (Internally fused maximum 1A).
Power & battery backup
The RTU-01 is powered by a 19V 3A power supply and has a built-in SLA battery charger. The included 12V 7Ah SLA battery will provide hours of monitoring when the mains fails (we recommend the battery is replaced each 2 years as part of your maintenance program)
Two powerful hearts
The RTU-01 contains a true 32bit CPU with integrated flash memory and RAM. This CPU is dedicated to performing all the input measurements and output control. Measurement data is sent to the main heart (a full embedded linux multi-core computer) that performs the more challenging tasks such as VPN and cellular connection, bi-directional data messaging and control signals to and from the cloud server.
Your own cloud
When you sign up for our platform, you get your own dedicated cloud server. Your server is not shared with anyone else and it will only ever have your equipment connected to it. Each cloud server can handle multiple RTU-01's and each cloud server will have it's own sub-domain name <yourname>.transmittersite.com
| Dimensions (RTU) | 25 x 18 x 5.5 cm |
| Dimensions (Linux/LTE module) | 9.5 x 9.0 x 3.5 cm |
| Supply Voltage | 19Vdc 3A with 5.5/2.1 DC plug (fused 3A M205) |
| Battery backup | 12V 7Ah SLA GEL Battery (fused 2A M205) |
| 8 Relay Outputs | Maximum 30Vdc 500mA |
| 8 Digital Inputs | Polarity independent inputs 12-24Vdc (4-8mA per input) |
| 8 Analog Inputs | 0-10Vdc impedance 30K Ohms |
| Output/Input fuse | 1A M205 shared between all three groups of 8. |
| Display | 128x64 pixel OLED display |
| Buttons | Six button for local control |
| LED Indicators | Power-mains fail, local-remote, online, 8 inputs, 8 outputs |
| RTU-01 | The main RTU unit |
| CP1B | Embedded Linux with 4G/LTE |
| RTU-CP1B cable | Interlink cable connects both devices together |
| Power supply | 19Vdc & AU mains cable |
| Battery | 12V SLA GEL Battery |
| Battery cable | 30cm battery cable with 6.35mm spade terminals & RTU connector |
| IDC Ribbon cables | Three ribbon cables with IDC connector at one end |
| Antenna | Indoor cellular antenna |
| Fuse set | Spare M205 fuse kit 2 * 1A, 1 * 2A, 1 * 3A |
